Configure route-based VPN tunnel on Cisco ASA

Route-based tunnels are preferred when creating a site-to-site VPN tunnel to Azure.

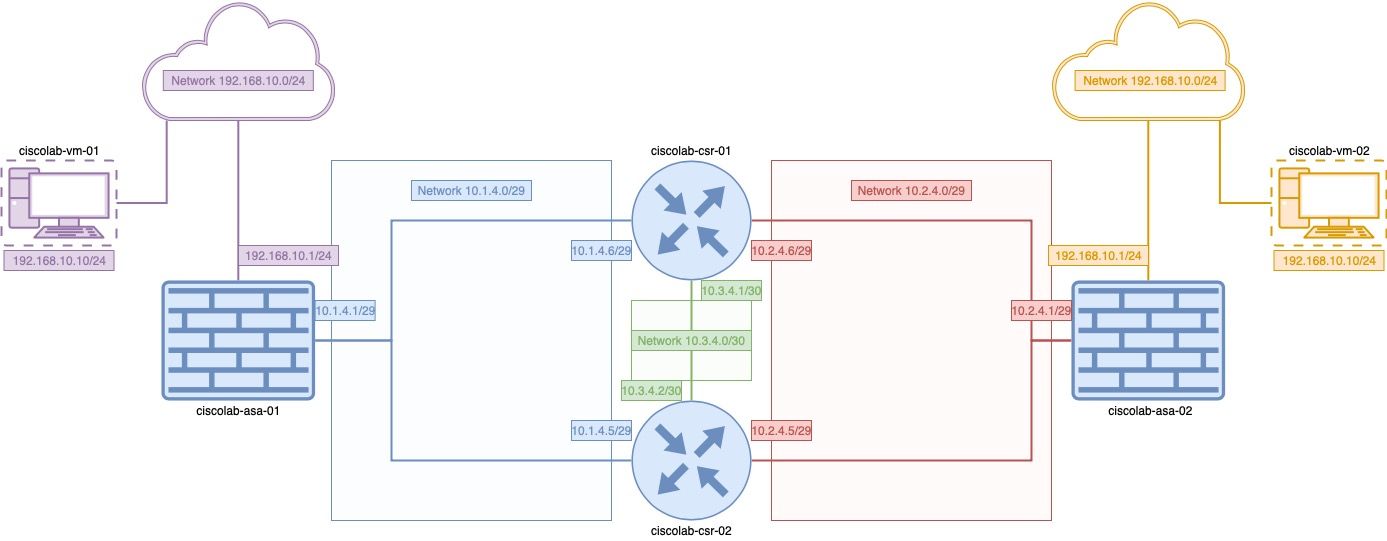

We will be using the following setup in this article:

Step-by-step guide #

To create a route-based VPN site-2-site tunnel, follow these steps:

• create a > * create a crypto ipsec proposal:

crypto ipsec ikev2 ipsec-proposal PROPOSAL-ROUTED-VPN
 protocol esp encryption aes-256
 protocol esp integrity sha-384

• create a crypto IPSec profile:

crypto ipsec profile PROFILE-ROUTED-VPN
 set ikev2 ipsec-proposal PROPOSAL-ROUTED-VPN
 set pfs group2
 set security-association lifetime kilobytes 102400000
 set security-association lifetime seconds 28800

• create a group policy:

group-policy GROUP-ROUTED-VPN internal
group-policy GROUP-ROUTED-VPN attributes
 vpn-tunnel-protocol ikev2

• create a tunnel group:

IP addresses assigned to the tunnels are non-routable and necessary to bring the tunnel up. Other than that, they do not show up in routing and cannot be accessed.

It is also necessary to create appropriate ACLs on both ASAs to allow traffic from between local networks (192.168.10.0/24 for ciscolab-asa-01 and 192.168.20.0/24 for ciscolab-asa-02):
ACL needed to allow traffic between local networks

access-list vpn-tunnel_access_in extended permit ip any any log interval 10
access-group vpn-tunnel_access_in in interface vpn-tunnel

It is not recommended to have a wide-open ACL such as the one in this example in production environments. It should be limited to necessary traffic only!

Last thing to do is to create routes for remote networks to point to the VPN tunnel:

Read more #

• Configure Policy-Based and Route-Based VPN from ASA and FTD to Microsoft Azure
